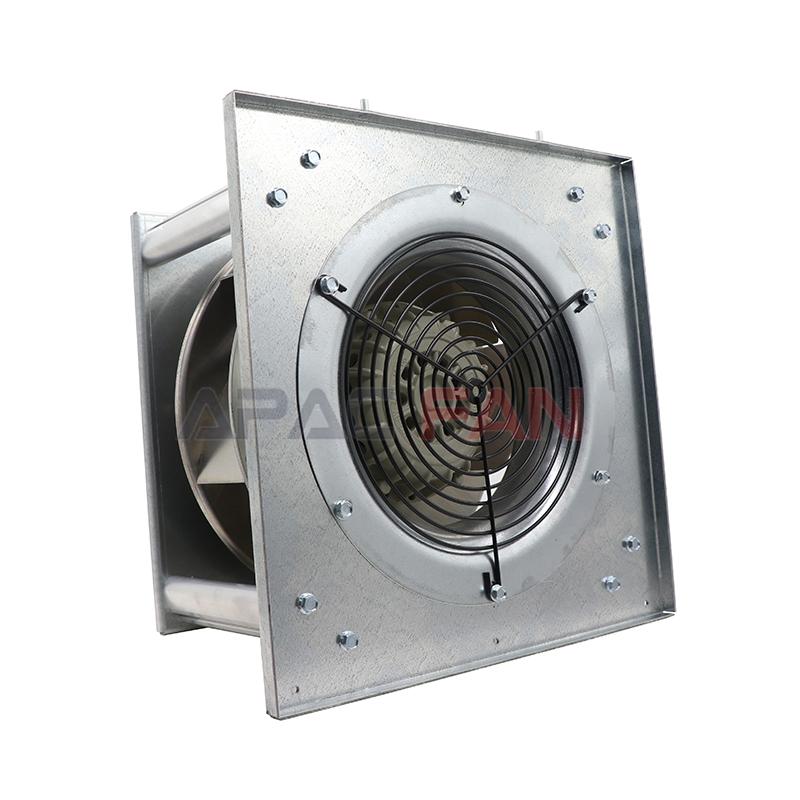

GR28I-6ID.BD.CR 116885/A01 ZIEHL-ABEGG Centrifugal Fan

Brand：

ZIEHL-ABEGG

Category：

Centrifugal Fan

Description：

Brand：ZIEHL-ABEGG
Part No：GR28I-6ID.BD.CR 116885/A01
Fan Type：Centrifugal Fan
Rated Voltage(V)：1~200-277
Size(mm)：280
Max.Air Flow(m³/h)：3950
Max.Pressure(Pa)：1000
Input Power(W)：780
Speed(rpm)：3110

00852-56261528 info@apacfan.com

Nominal data

Brand：

ZIEHL-ABEGG

Part No.：

GR28I-6ID.BD.CR 116885/A01

Fan Type：

Centrifugal Fan

Rated Voltage(V)：

1~200-277

Size(mm)：

280

Max.Air Flow(m³/h)：

3950

Max.Pressure(Pa)：

1000

Input Power(W)：

780

Speed(rpm)：

3110

Noise(db)：

Description

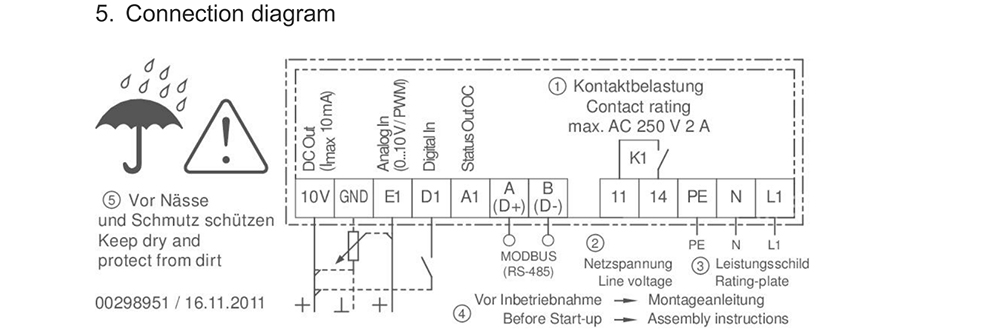

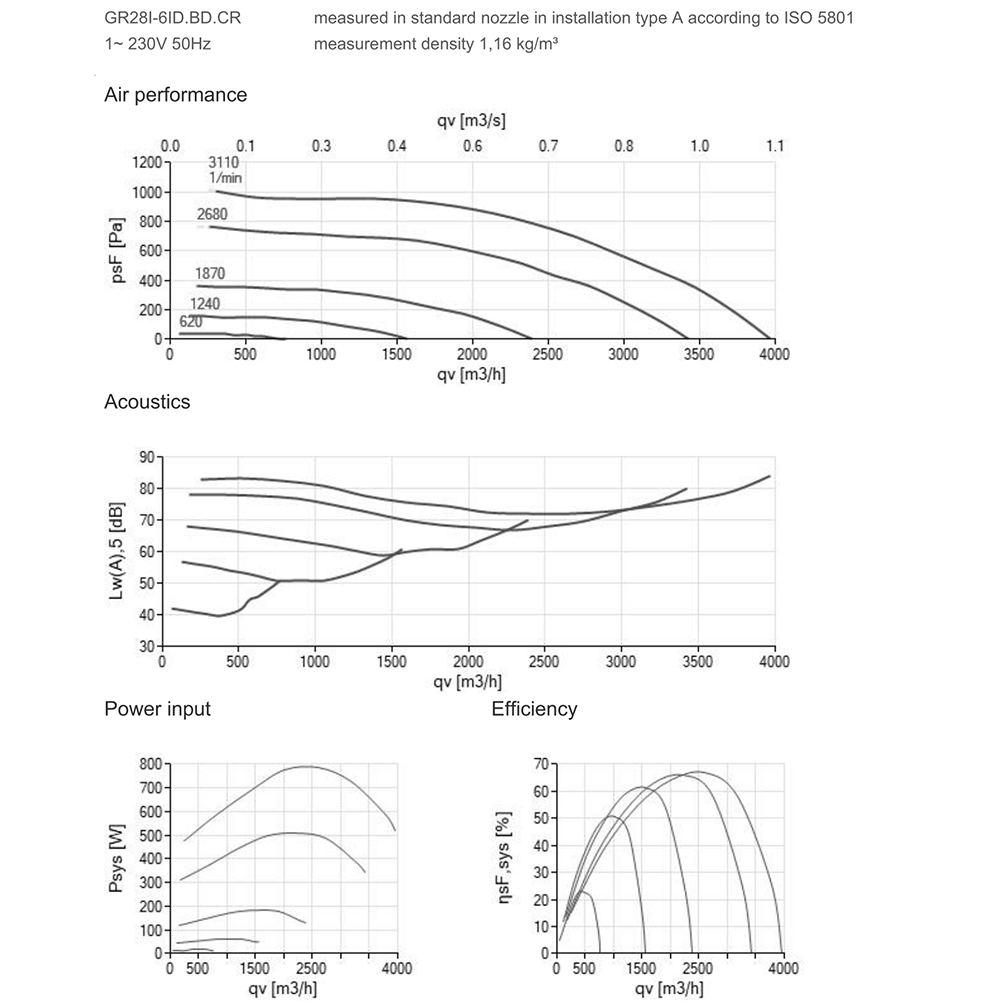

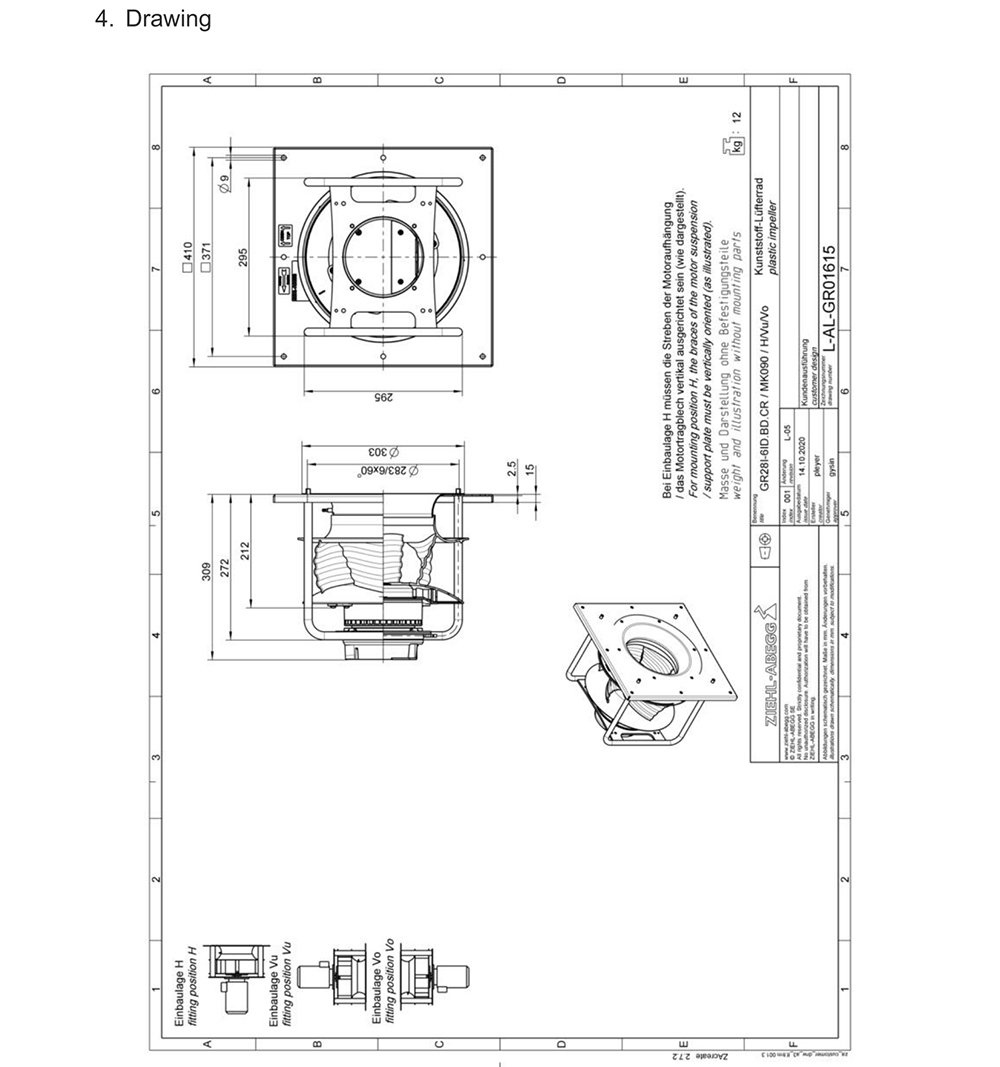

GR28I-6ID.BD.CR 116885/A01 Ziehl-abegg Specification drawing：
